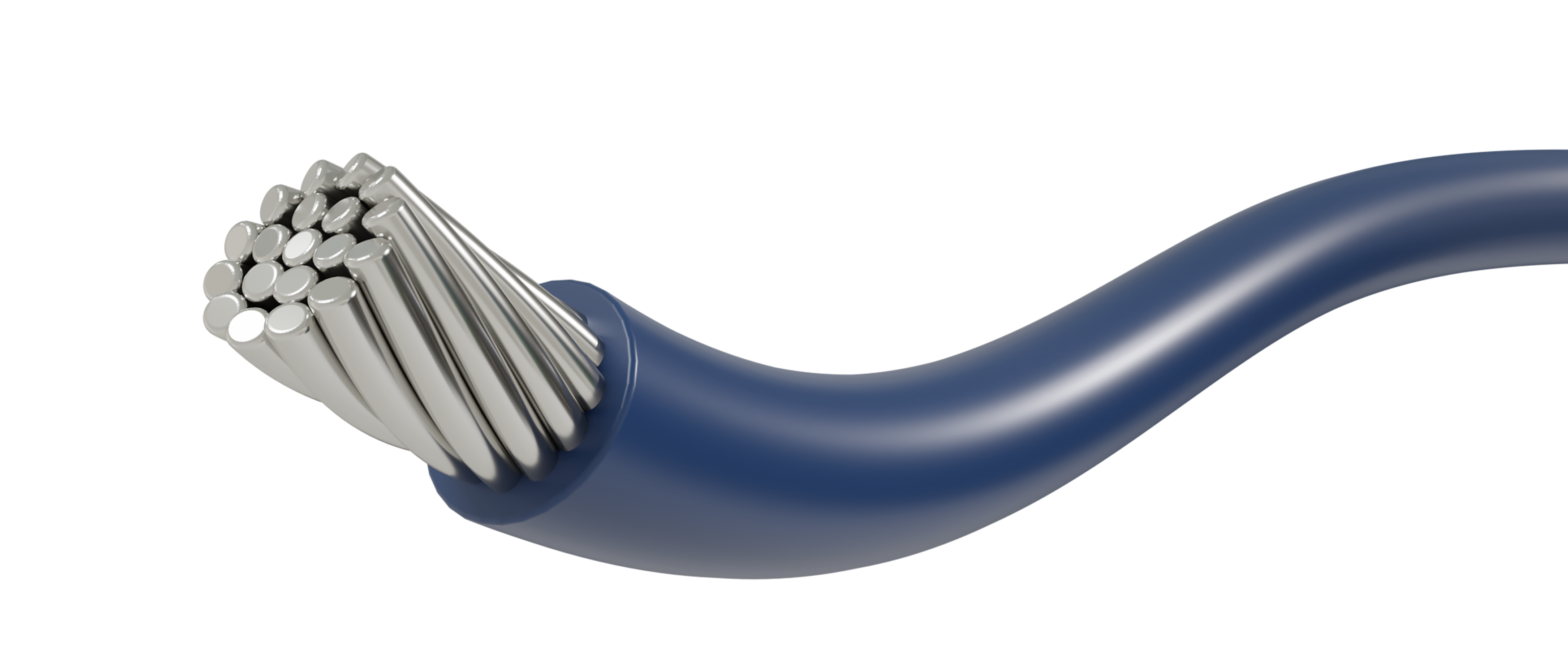

CASFLON™ 150 UL/cUL
Style 1164 (UL 1164)
Construction
Type
electrical wire
Core
bare, tin-plated, nickel-plated or silver-plated copper
Insulation
PTFE
Thermal Characteristics
Operating temperature
-65°C to +150°C
Electrical Characteristics
Operating Voltage
300V
Testing Voltage
1500 V
Production
Range width
AWG 32 to 10
Options
Please consult us for any special requirements
Casmo Part No. | Wire gauge(AWG) | # Strands | Diam. Of Strands(mm) | Conductor Diameter(mm) | Wall thickness(mm) | Final O.D.(mm) | Approx, Wt.(kg/km) |
|---|---|---|---|---|---|---|---|
1210101 | 10 | 37 | 0.43 | 3.01 | 0.33 | 3.67 | 51.93
|
1210102
| 12 | 19 | 0.49 | 2.45 | 0.33 | 3.11 | 34.93 |
1210103 | 14 | 19 | 0.37 | 1.85 | 0.33 | 2.51 | 24.40
|
1210104 | 16 | 19 | 0.3 | 1.5 | 0.33 | 2.16 | 16.40
|
1210105 | 17 | 19 | 0.26 | 1.3 | 0.33 | 1.96 | 14.80 |
1210106 | 18 | 19 | 0.23 | 1.15 | 0.33 | 1.81 | 13.10 |
For more details, please download the sheet.
Downloads
Technical data sheet
General Characteristics
Weather conditions
excellent resistance to UV
Chemical behaviors
excellent resistance to aggressive chemical environments
Humidity
excellent resistance to humidity
Mechanical behaviors
excellent mechanical strength
Application
General use
internal cabling for electrical appliances or electronic appliances
Industry
cabling for industrial machines
Electromechanics
cabling for rotating machines
Household appliances
cabling for household electrical heating appliances
Frequently Asked Questions (FAQ)
Its thin-wall extruded PTFE insulation handles 300V stresses effectively, preventing breakdowns in high-frequency applications like appliances and ensuring stable signal transmission.
Meeting UL, CSA, and AWM requirements, it streamlines certification for North American exports, avoiding re-testing delays and facilitating quick market entry for global suppliers.
With conductor sizes from 32-10 AWG and thin insulation, it offers weight and space savings, ideal for compact wiring in machinery without compromising on 150°C thermal performance.
PTFE insulation resists chemicals, oils, and gasoline, protecting cables in harsh environments like automotive or industrial settings to reduce failure rates and repair needs.
Horizontal flame compliance prevents fire propagation, enhancing safety in internal wiring of heaters or electronics and minimizing liability in high-risk production lines.
