150°C & Lower Fluoropolymer-Insulated Wires

Cosmo Cable

Wires and cables

CASFLON™ 150 UL/cUL

Style 11063

Operating Temperature: -65°C to +150°C

Insulation: PFA

Operating Voltage: 600V

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1164

Operating Temperature: -65°C to +150°C

Insulation: PTFE

Operating Voltage: 300V

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1198

Operating Temperature: -65°C to +150°C

Insulation: PTFE

Operating Voltage: 600V

Approval: UL/cUL

View Product

CASFLON™ 150 UL/cUL

Style 1212/1213

Operating Temperature: -65°C to +80°C

Insulation: PTFE

Operating Voltage: no requirements

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1331

Operating Temperature: -65°C to + 150°C

Insulation: FEP

Operating Voltage: 600V

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1333

Operating Temperature: -65°C to +150°C

Insulation: FEP

Operating Voltage: 300V

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1591

Operating Temperature: -65°C to +150°C

Insulation: FEP

Operating Voltage: 300V

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1857

Operating Temperature: -65°C to +150°C

Insulation: PFA

Operating Voltage: 150V

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1858

Operating Temperature: -65°C to +150°C

Insulation: PFA

Operating Voltage: 300V

Approval: UL

View Product

CASFLON™ 150 UL/cUL

Style 1859

Operating Temperature: -65°C to +150°C

Insulation: PFA

Operating Voltage: 600V

Approval: UL

View Product

CASFLON™ 200 UL/cUL

Style 10133

Operating Temperature: -65°C to +105°C/
150°C / 200°C

Insulation: PTFE

Operating Voltage: 300V

Approval: UL

View Product

CASFLON™ NEMA

HP4 Type K

Operating Temperature: -65°C to +150°C/
200°C

Insulation: extruded FEP

Operating Voltage: 600V

Approval: NEMA HP4 Type K ex. MIL-W-16878/ 11

View Product

CASFLON™ NEMA

HP4 Type KK

Operating Temperature: -65°C to +150°C/
200°C

Insulation: FEP

Operating Voltage: 1000V

Approval: NEMA HP4 Type KK ex. MIL-W-16878/12

View Product

CASFLON™ NEMA

HP4 Type KT

Operating Temperature: -55°C to +150°C/
200°C

Insulation: extruded FEP

Operating Voltage: 250V

Approval: NEMA HP4 Type KT ex. MIL-W-16878/13

View Product

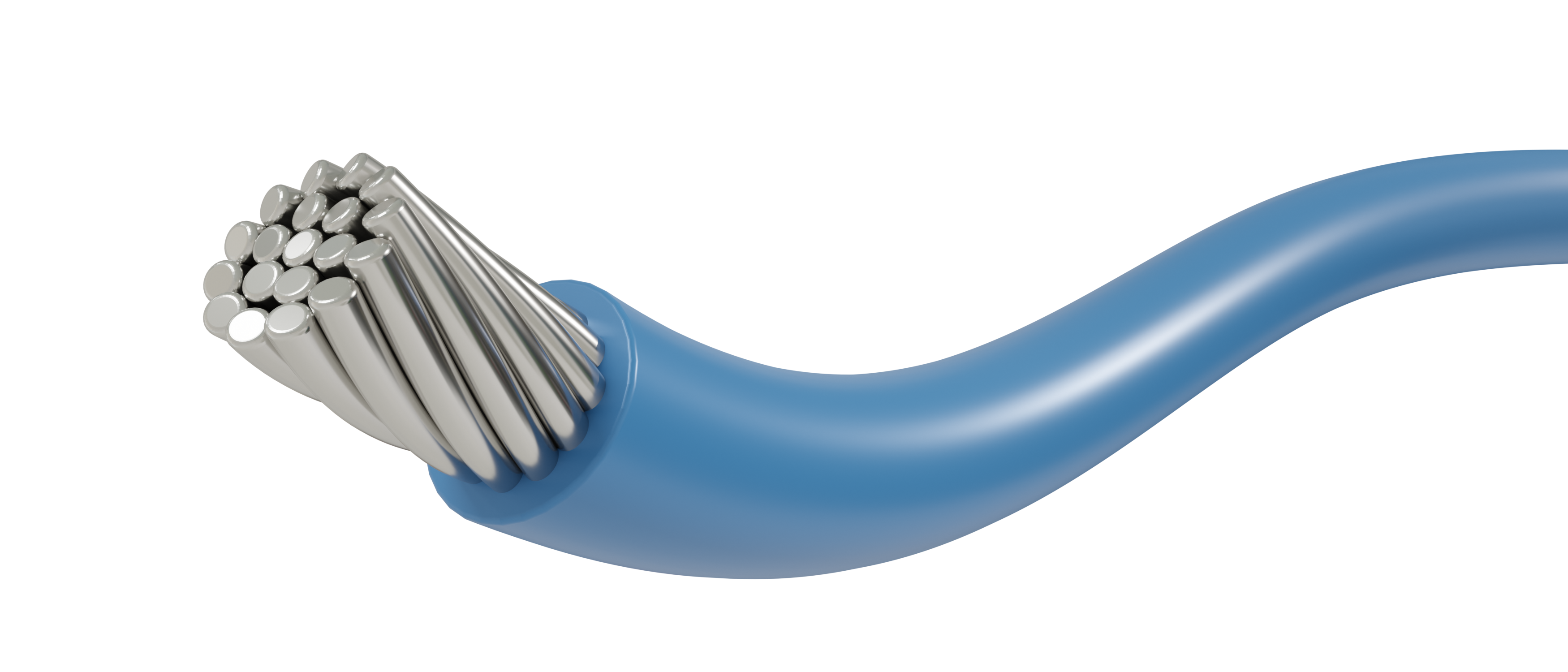

CASFLON™ SAE

AS22759 / 16

Operating Temperature: 150°C

Insulation: extruded ETFE

Operating Voltage: 600V

Approval: MIL-W-22759 / 16 / 17 / 18 / 19

View Product

CASFLON™ SAE

AS22759 / 17

Operating Temperature: 150°C

Insulation: extruded ETFE

Operating Voltage: 600V

Approval: MIL-W-22759 / 16 / 17 / 18 / 19

View Product
